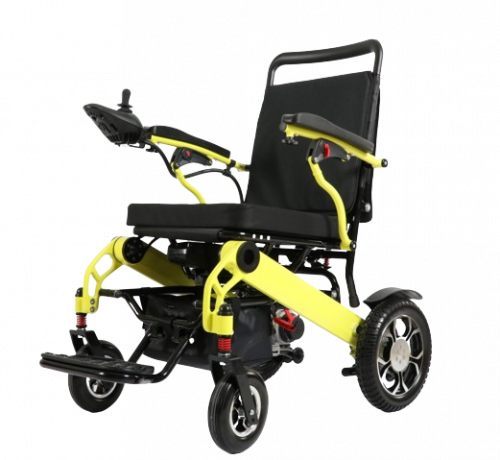

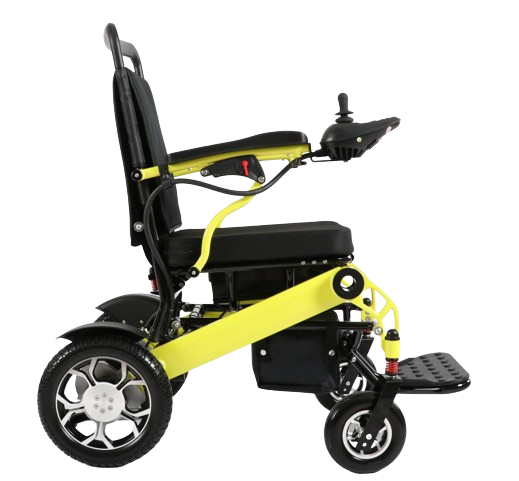

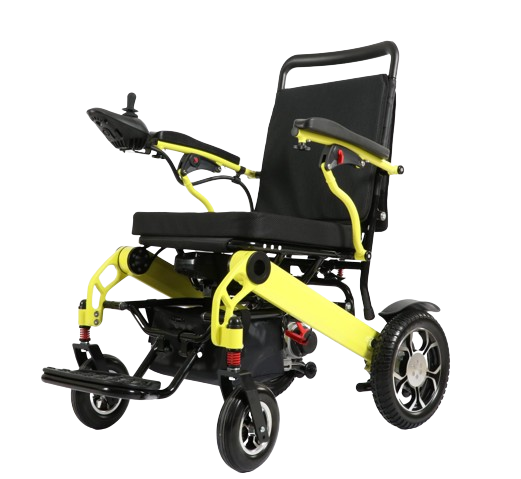

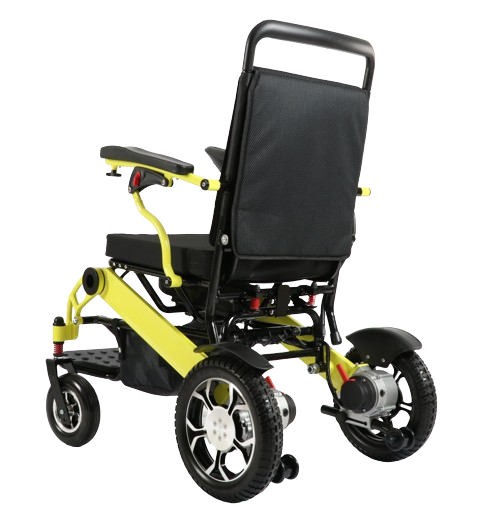

D25 Folding Power Wheelchair

Experience enhanced mobility and comfort with our D25 Folding Power Wheelchair designed to empower individuals with ease of movement.

Specifications:

• Unfold Size (L*W*H): 1030*610*1015 mm (40.5"*24"*40")

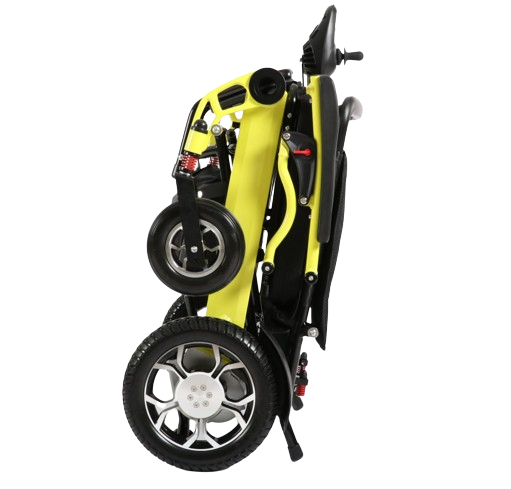

• Fold Size (L*W*H): 610*380*840 mm (24"*15"*33")
• Seat width: 465 mm (18.3")
• Armrests Spacing: 440 mm (17.3")
• Seat Depth: 440 mm (17.3"
• Seat Height: front 550 mm(21.6") / back 520 mm(20.5")
• Footrest Height: front 210 mm(8.2") / back 175 mm(6.9")
• Armrest to seat distance: front 230 mm(9")/ back 200mm(7.9")
• Backrest to seat distance: 520 mm (20.5")
• Anti-tip wheel to Ground distance: 60mm (2.3")
• N.W (without battery): 26.4kg (58lbs)
• N.W (with battery): 28.2 Kg (62.1lbs)
• Gross Weight(with packing): 32Kg (70.5lbs)

Motor:

• Type: Brush Motor.
• Rated power: 250W
• Rated voltage: 24V
• Braking System: Electromagnetic brake.
• Braking Distance: 800 mm (31.5")

Battery:

• Type: lithium battery.
• Rated voltage: 24V
• Capacity: 12AH

Controller

• Type: Brush Controller.
• Output voltage/current: 24V/45A

Front wheel:

• Specification: 200 mm*50 mm (7.9"*2")
• Material: PU Solid Tire.

Rear Wheel:

• Specification: 315 mm*60 mm (12.4"*2.36")
• Material: PU Solid Tire.

Other Parameters:

• Max Climbing angle: 8 degrees.
• Driving Distance: 20km-25km  (12.4 miles-15.5 miles)
• Max Speed: 6 km/h  (3.7mph)
• Turning Radius: 800mm (31.5")
• Obstacle crossing height: 40mm (1.57")
• Charging Time: 6 hours approx.
• Standard Load Capacity: 120 kg (264.5lbs)
