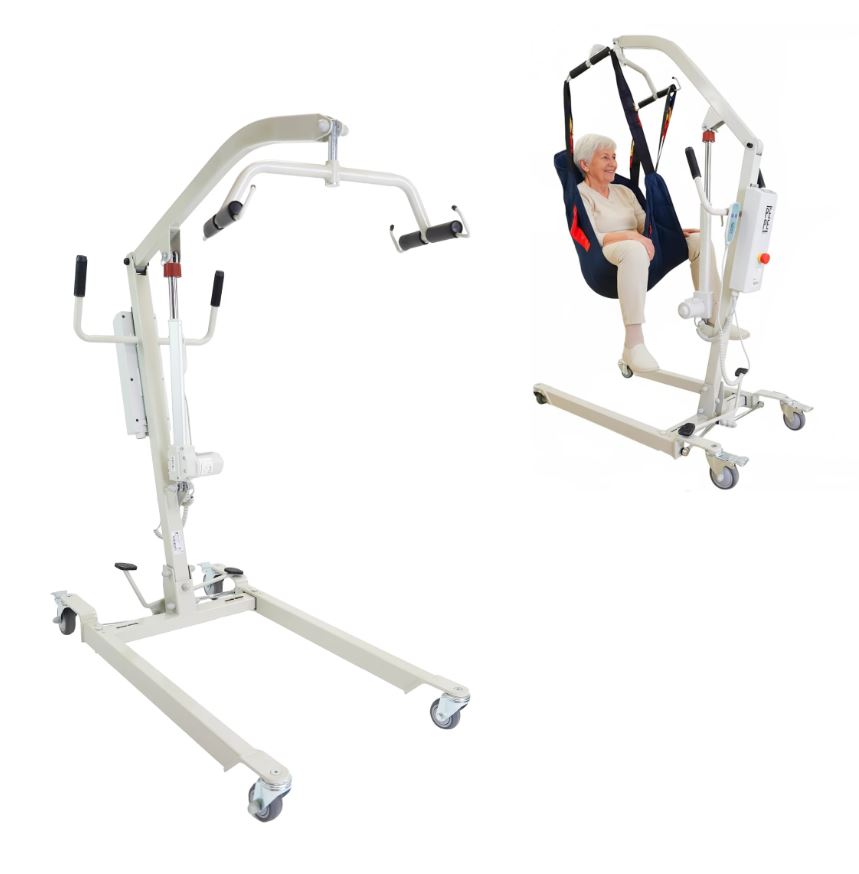

Electric Transfer Lift

Electric  transfer hoist that allows moving bedridden people without great effort.

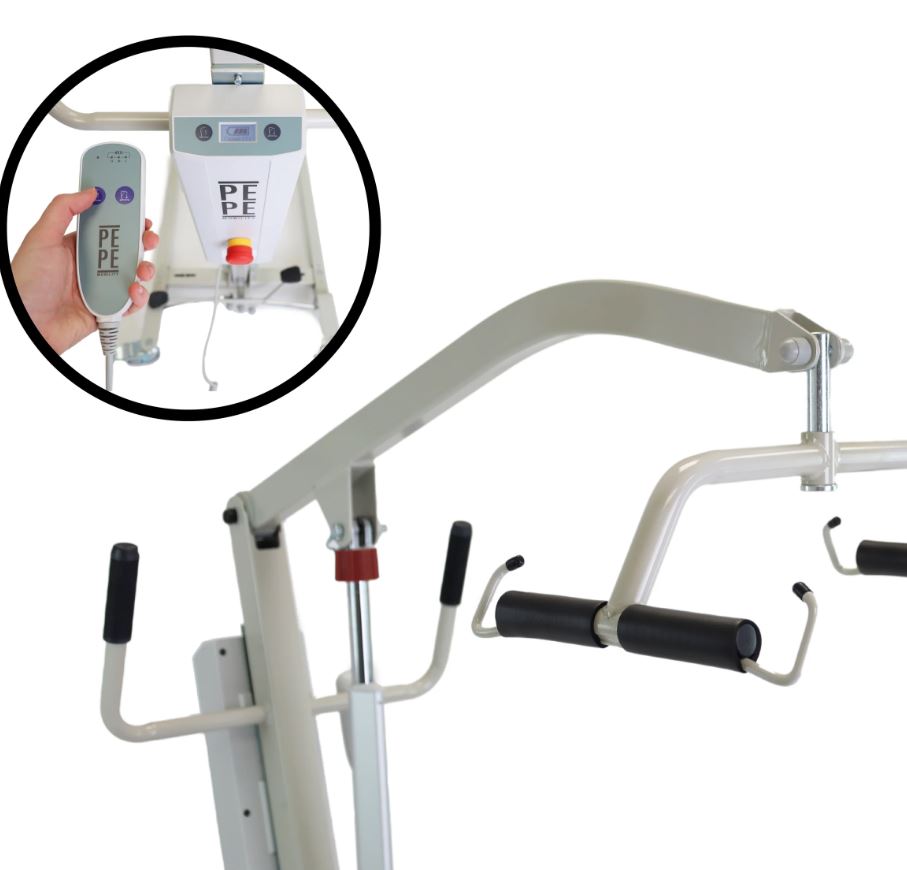

The transfer hoist includes a control panel and remote  with extendable cable, for better accessibility of the caregiver to the control of the hoist.

ROBUST AND SAFE

The crane structure for people with reduced mobility has a robust structure  equipped with secure fixings and metal anchor brakes.

The base is width adjustable with pedals , to adapt to narrow doorways as well as wide chairs and armchairs.

EXTRA FEATURES (HARNESS INCLUDED)

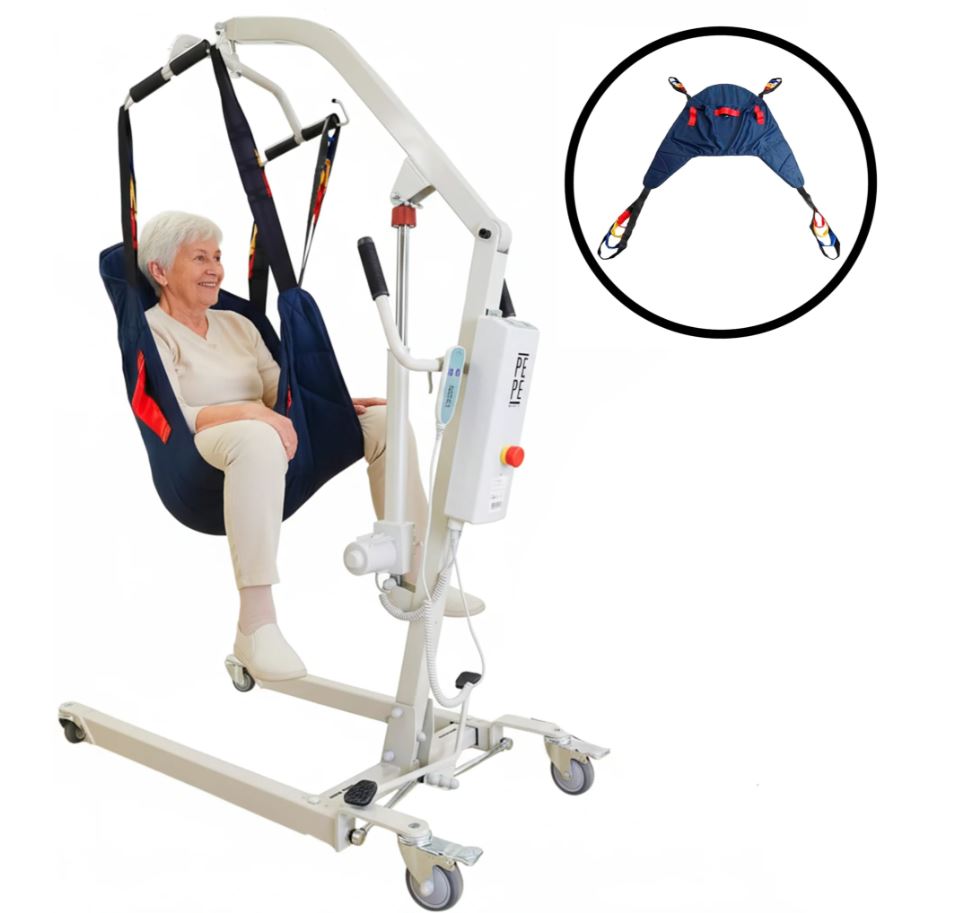

The  included harness  allows the user to be lifted safely from a seated or lying position. The hoist supports a maximum weight of 150 kg.

♥ ELECTRIC AND SAFE : Electric transfer crane to prevent overexertion, guaranteeing stability and total control with every lift. Prevents unwanted movement and ensures a firm hold with the metal brakes on the rear legs.

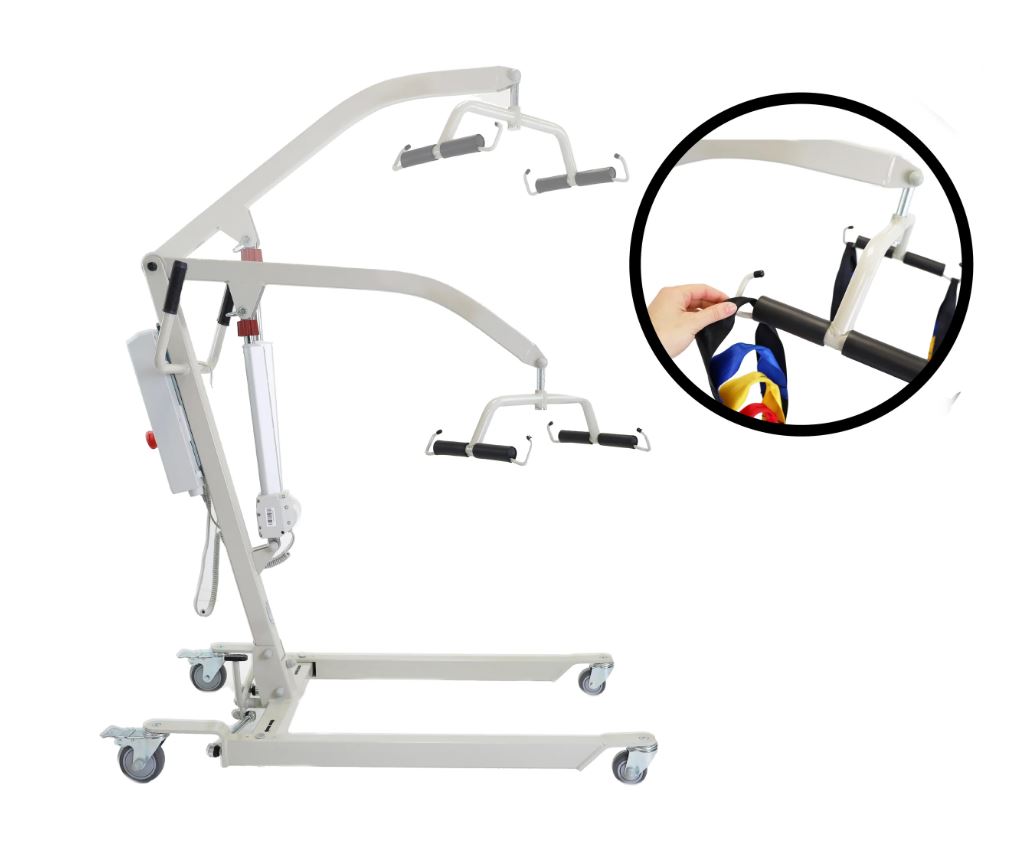

♥ MULTIDIRECTIONAL SUPPORT : The patient support hook allows for adjustment in all directions for greater comfort. It also features soft handles that the user can grip during lifting, providing safety and confidence in the process. An ergonomic harness is included that adapts to the user for optimal support.

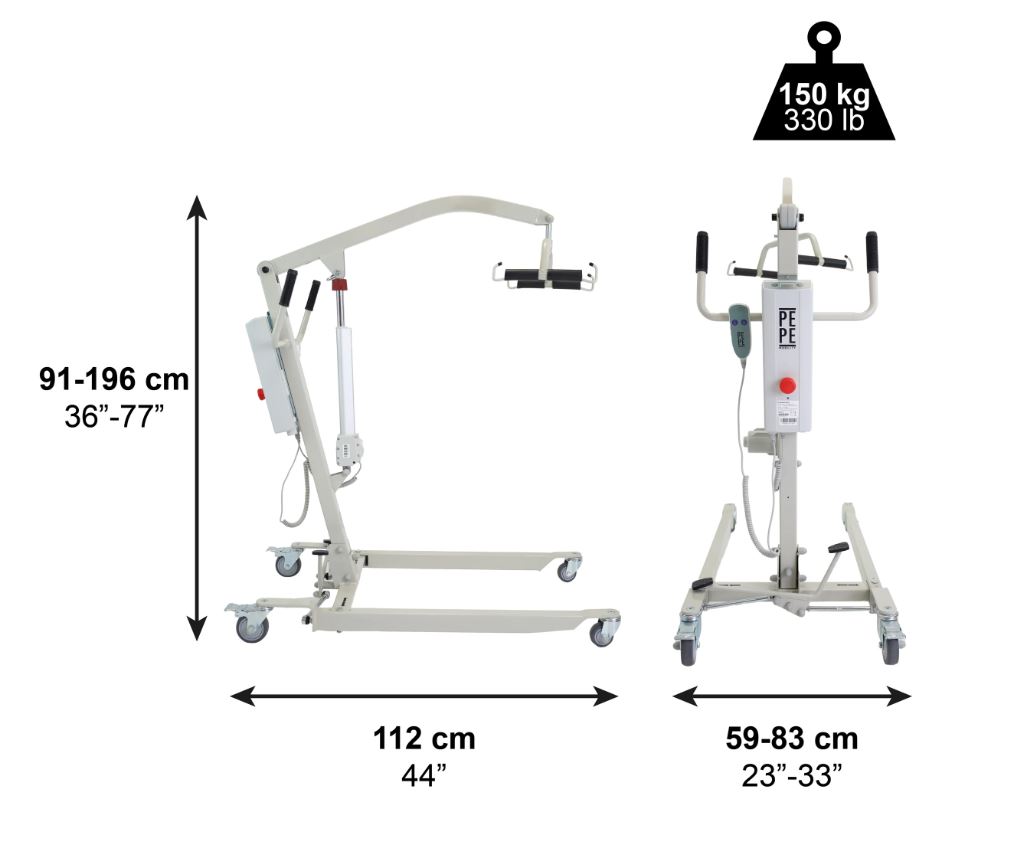

♥ WIDE HEIGHT RANGE : Its adjustable lifting system allows you to regulate the height between 70 cm and 175 cm, ideal for picking up the person from the floor or making comfortable transfers to the bed, wheelchair or sofa.

♥ EASY ASSEMBLY : Its intuitive design allows for quick assembly without the need for specialized tools, making it easy to install in any environment.

♥ STURDY FRAME: Made of high-durability steel, it supports up to 150 kg. Its rear wheels with brakes ensure stability at all times, while its adjustable base allows it to adapt to different spaces for a safe and efficient transfer.

✔ RECOMMENDED FOR HOME USE: Ideal for assisting the elderly or those with reduced mobility. Its versatile design makes it perfect for use in hospitals, nursing homes, rehabilitation centers, and private homes.

HOW TO USE

STEP 1: Bring the crane closer to the user

Position the harness by rotating the user so they are underneath. Bring the hoist closer from the side of the bed and adjust the width of the base to the user's position.

IMPORTANT : The transfer hoist can be used with users who have fallen to the ground.

STEP 2: Attach the harness.

Pass the leg strap from the inside to the top of each thigh and cross the lower straps for maximum security. Attach the harness to the hooks on the swing.

IMPORTANT:  The front handles of the harness must be hooked crosswise to the swing hangers, leaving the legs on the outside.

STEP 3 : Go up and down.

Lift the user onto the crane and  transport them wherever you want, always keeping them holding onto the crane's handlebars  .

IMPORTANT:  If you wish to stop immediately, press the red emergency stop button.

STEP 4 : Transport.

Readjust the base of the crane according to the width of the bed/seat where the user will be transported and lower the height of the harness, safely sitting or lying the user down.
