PEPE Mobility Wheelchair Ramp

PEPE Mobility Wheelchair Ramp

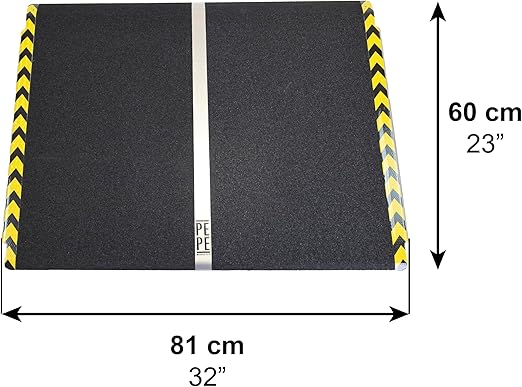

Total dimensions:

• Depth: 60cm
• Width: 81cm
• Height: 4.5cm
• Step height: Min. 7 cm | Max. 15 cm
• Weight: 6kg

Material:

• Aluminum

Download PDFMANUAL

Keep these measurements in mind to confirm that you can use the 60cm deep ramp where you want.

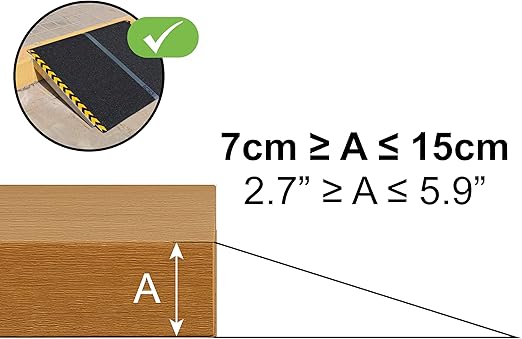

• The step height must be greater than or equal to 7 cm and less than or equal to 15 cm. If this is the case, you can install the 60 cm deep ramp without problems.

Features:

• Non-slip surface and reflective strips  on both sides. The wheelchair ramp is designed with a non - slip surface  to prevent slips and falls when using wheelchairs, walkers, strollers, or scooters.

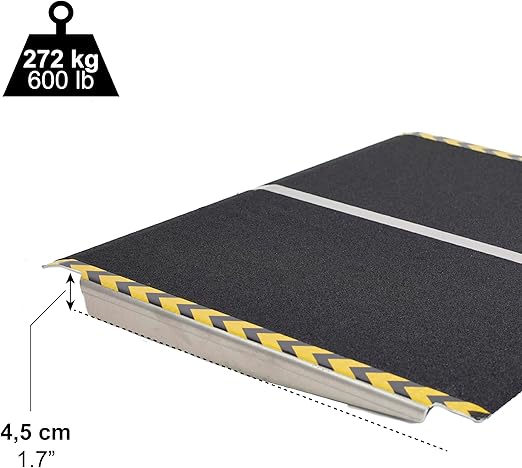

• Easy to install and transport. The wheelchair ramp has a total depth of 60 cm and a total width of 81 cm . It is adjustable and very easy to assemble and disassemble.  The ramp weighs 6 kg and supports up to 272 kg.

How to install the ramp

STEP 1

Determine the installation location and mark its position with a marker on the holes in the base. With the position clearly marked and using an 8 mm drill bit,  drill the holes in the surface.

STEP 2

Insert the  Ø8x40mm plugs  into the holes and carefully use a hammer if necessary.

STEP 3

Secure the Ø4.9x38mm screws through the holes in the ramp. Make sure the ramp is fixed.

IMPORTANT:  If the surface is plastic or wood, two additional screws of Ø4x17mm are included.

Product Information

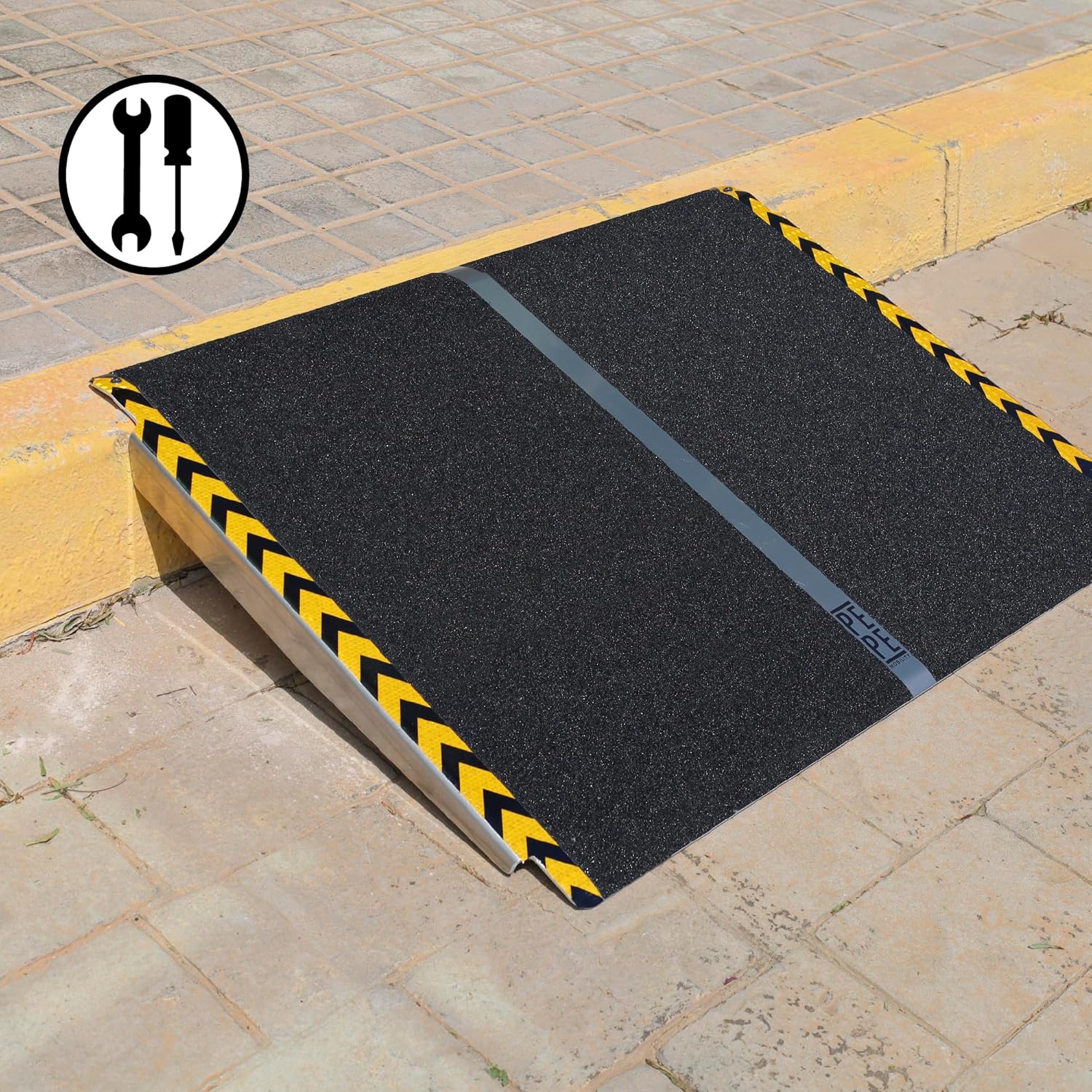

♥ SAFE AND SMOOTH ACCESS : Perfect for small differences in level, the 60cm wheelchair ramp is ideal for overcoming thresholds and curbs between 7 and 15cm high, facilitating a safe and smooth transition between different surfaces.

♥ LIGHTWEIGHT AND DURABLE : Made of high-quality aluminum, this ramp is lightweight yet supports up to 272 kg. Rust and water resistant, it is ideal for indoor and outdoor use.

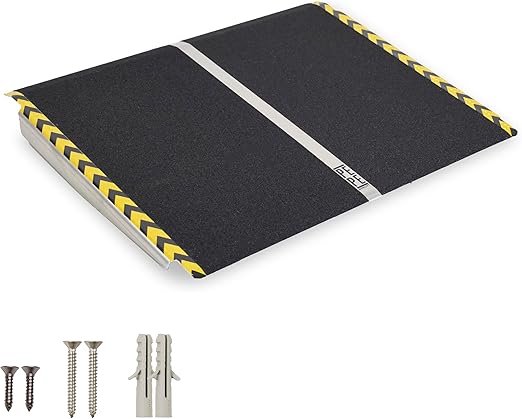

♥  INSTALLATION REQUIRED : Its design allows it to be placed wherever needed. Assembly is required and it adapts to different heights of steps and curbs. Includes two screws and wall plugs for fixing to cement, wood, or plastic.

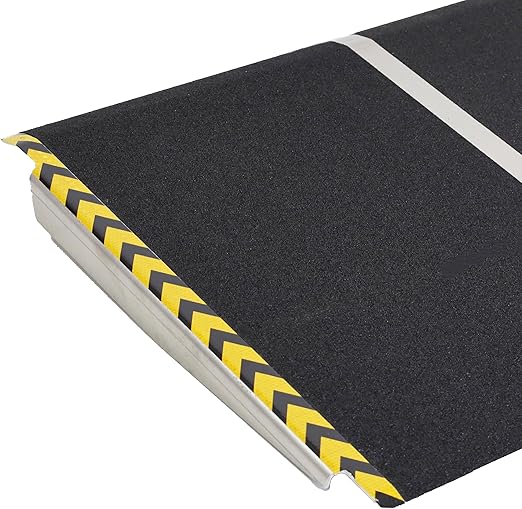

♥ NON-SLIP SURFACE : The high-traction non-slip layer and yellow warning stickers on the sides increase safety even in wet or low-light conditions.

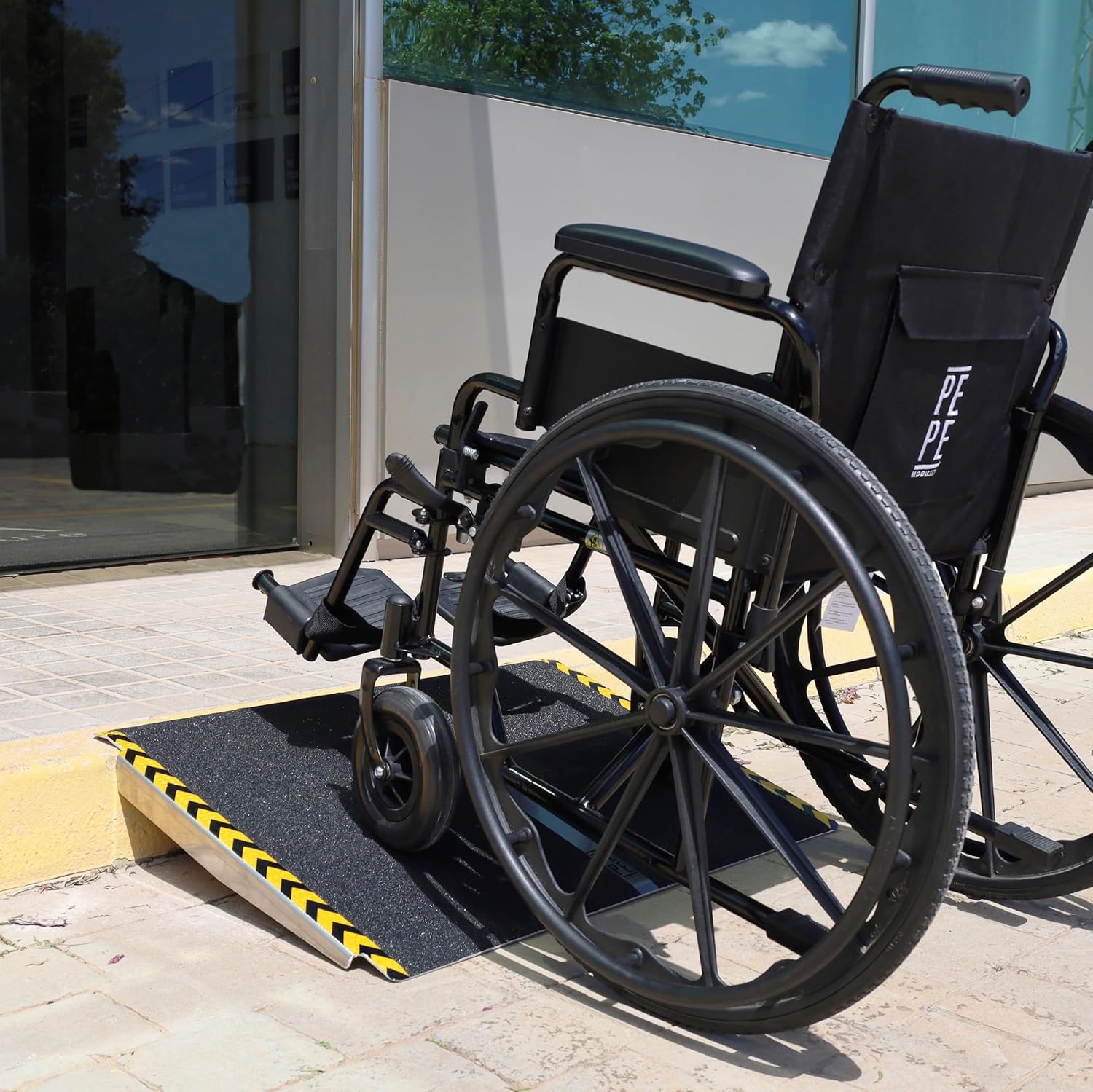

♥ RECOMMENDED : Recommended for users with manual or electric wheelchairs, walkers or scooters in order to facilitate safe passage in front of steps
