Small PEPE Wheelchair Ramp

Small PEPE Wheelchair Ramp P10040

• Total dimensions: Depth: 30cm x Width: 81cm
• Height: 1.5 cm
• Material: Aluminum
• Step height: Minimum: 2cm | Maximum: 6.9cm
• Weight: 2.7 kg

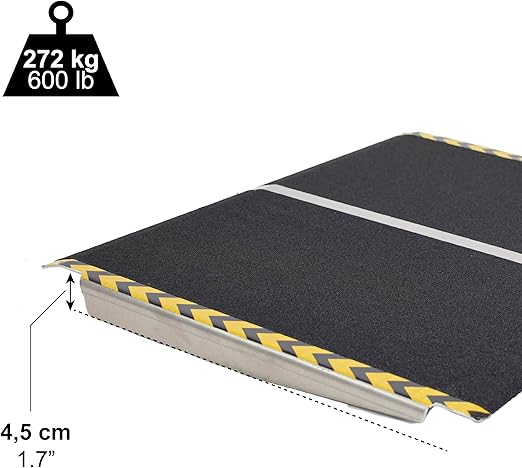

• Maximum Load: 272 kg

Download PDFMANUAL

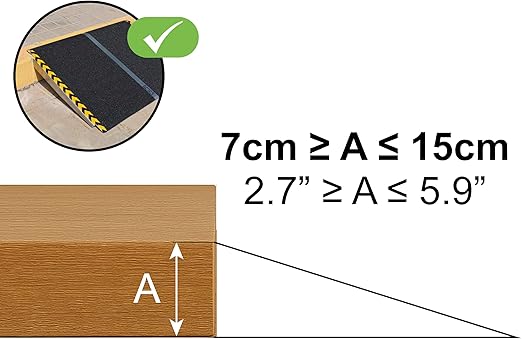

Keep these measurements in mind to confirm that you can use the 60cm deep ramp where you want.

• The step height must be greater than or equal to 2 cm and less than 7 cm. If this is the case, you can install the 30 cm deep ramp without problems.

How to install the ramp

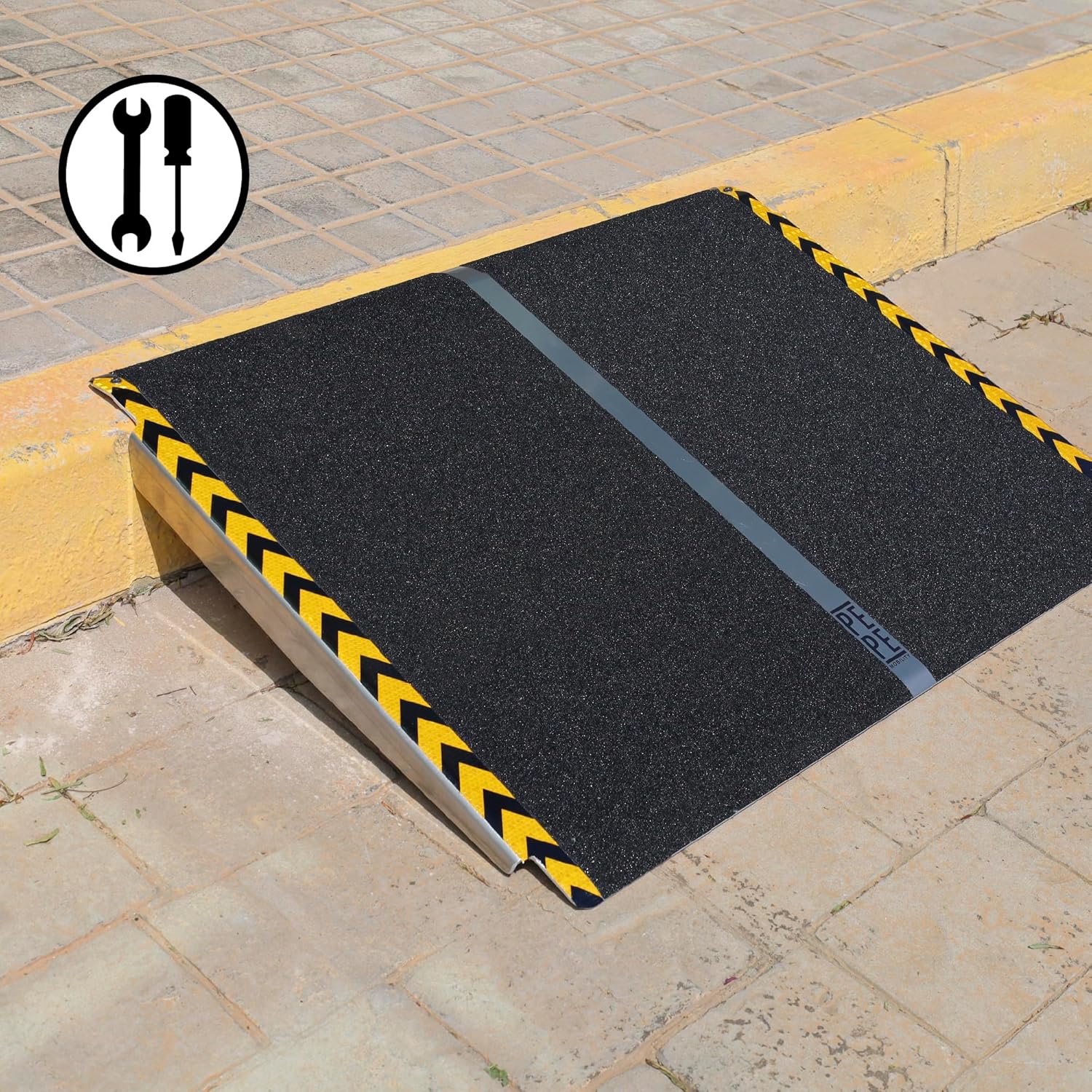

• STEP 1 Determine the installation location and mark its position with a marker on the holes in the base. With the position clearly marked and using an 8 mm drill bit,  drill the holes in the surface.

• STEP 2 Insert the  Ø8x40mm plugs  into the holes and carefully use a hammer if necessary.

• STEP 3 Secure the Ø4.9x38mm screws through the holes in the ramp. Make sure the ramp is fixed.

IMPORTANT:  If the surface is plastic or wood, two additional screws of Ø4x17mm are included.

Product Information

• SAFE AND SMOOTH ACCESS : Perfect for small differences in level, the 30cm wheelchair ramp is ideal for overcoming thresholds and curbs up to 6.9cm high, facilitating a safe and smooth transition between different surfaces.
• LIGHTWEIGHT AND DURABLE : Made of high-quality aluminum, this ramp is lightweight yet supports up to 272 kg. Rust and water resistant, it is ideal for indoor and outdoor use.

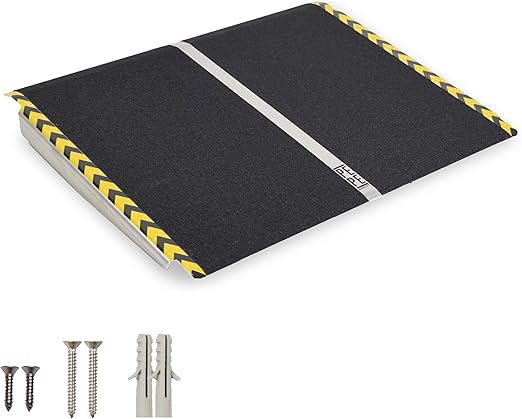

• INSTALLATION REQUIRED : Its design allows it to be placed wherever needed. Assembly is required and it adapts to different heights of steps and curbs. Includes two screws and wall plugs for fixing to cement, wood, or plastic.

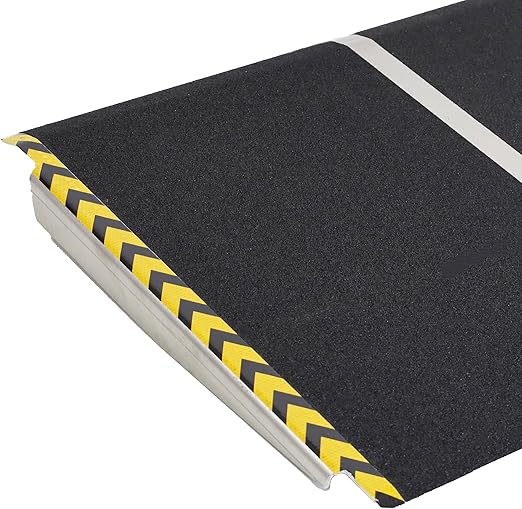

• NON-SLIP SURFACE : The high-traction non-slip layer and yellow warning stickers on the sides increase safety even in wet or low-light conditions.

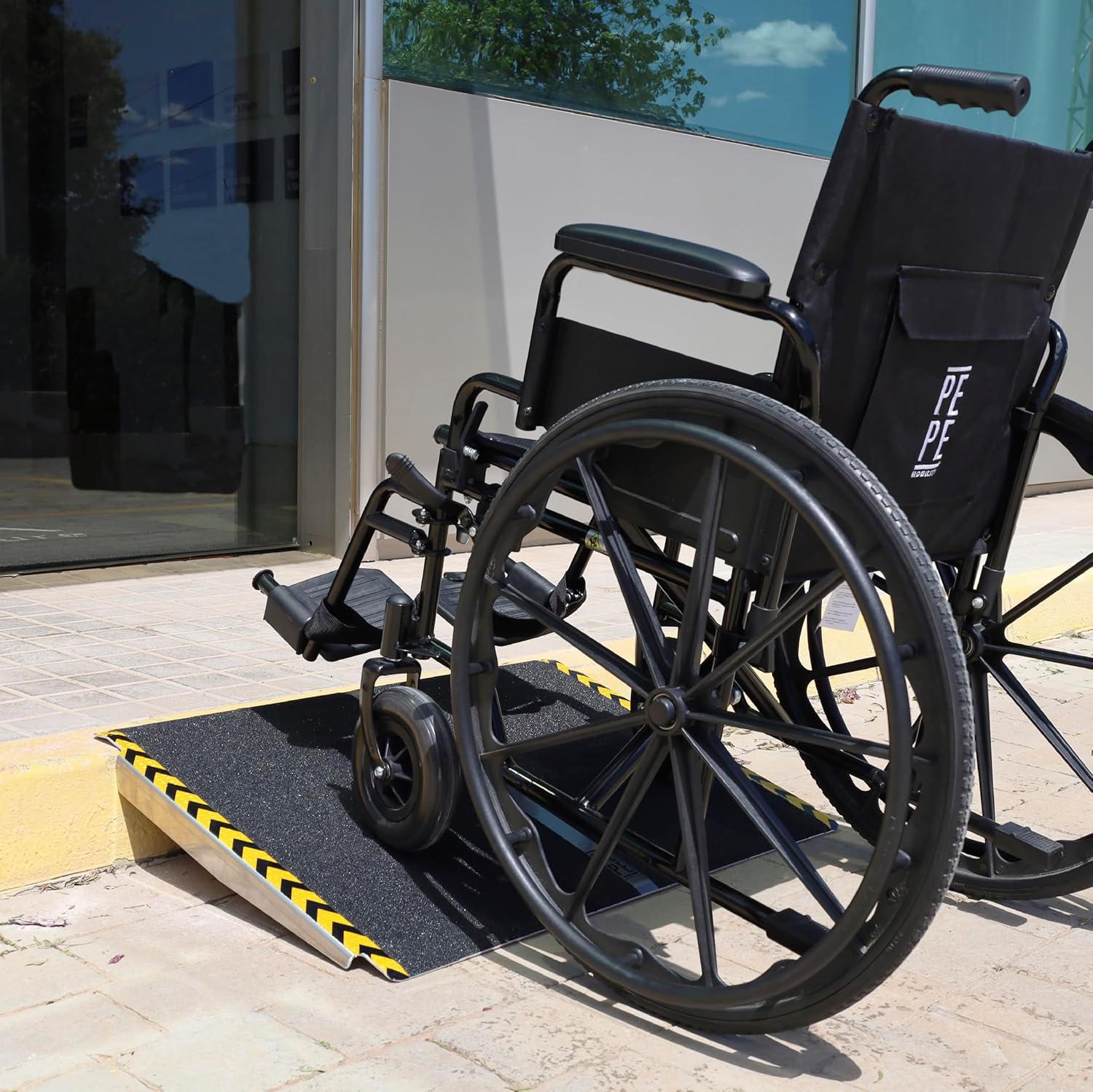

• RECOMMENDED : Recommended for users with manual or electric wheelchairs, walkers or scooters in order to facilitate safe passage in front of steps.
